Basic product parameters

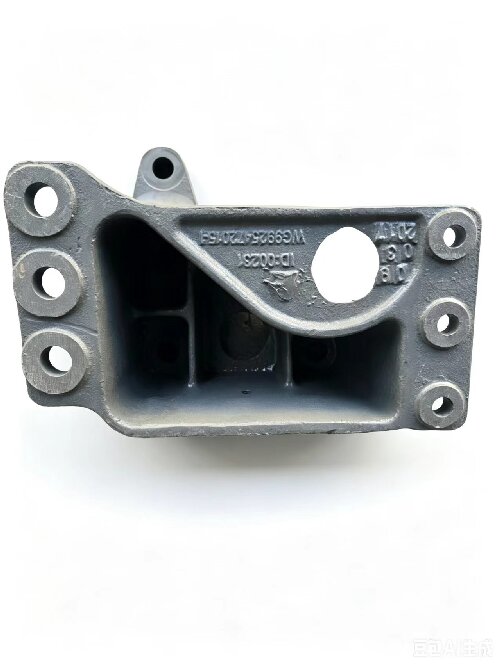

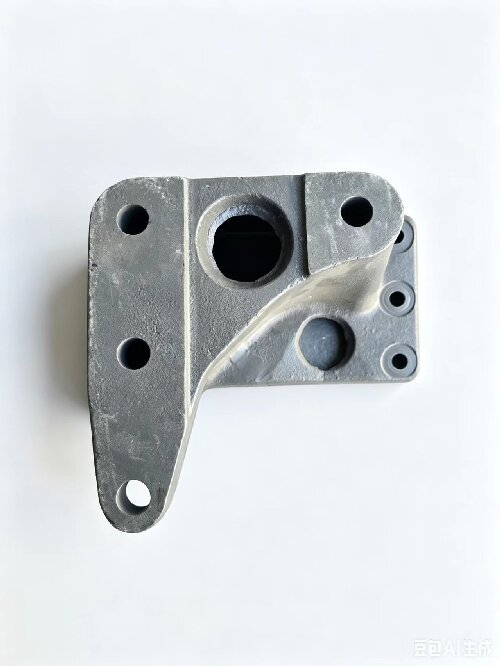

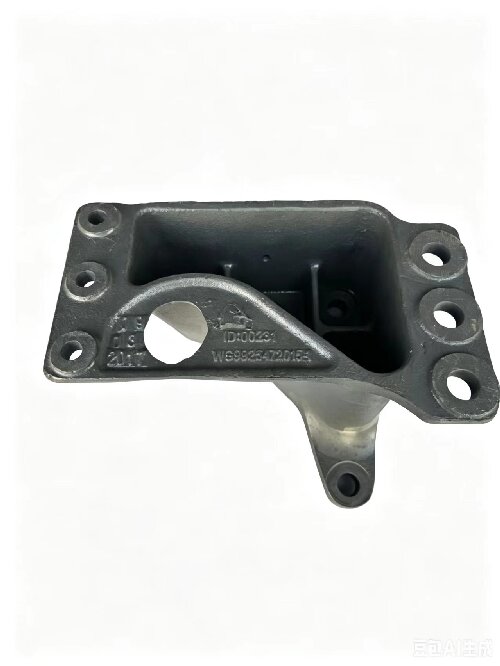

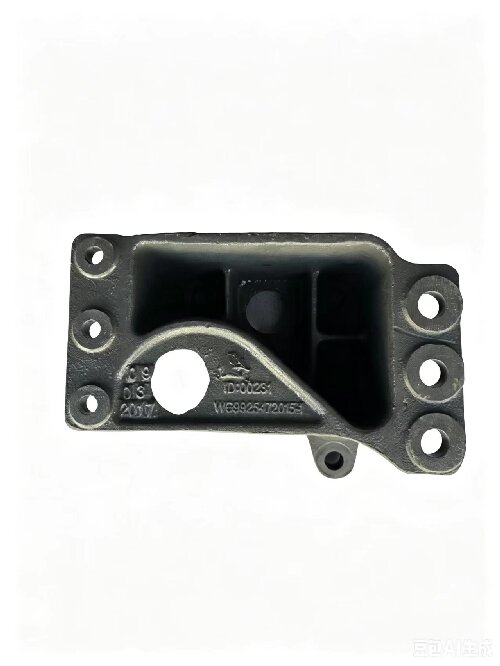

Part Number: WG9925472015 ProductName: Steering Gear Bracket / SteeringGear Bracket Applicable Models: SinotrukHowo T7H, Howo T5G, Shandeka C7Htractor, dump truck, truck 668 A.
Installation location: Front of the frame,fixed hydraulic power steering assembly
Material: High ductile steel, Net
Materials and Manufacturing Process
1. Integrated casting and casting, no joint welds overall strength significantly higher than that of stamped steel plate supports. It is less likely to break
or tear under heavy load and rough working conditions
2. The unit strengthens the integral molding,disperses the steering gear’s operatingvibration, and reduces bracket fatigue cracking.
3. Electro-plastic anti-corrosion coating for body, waterresistance, saline-alkali resistance, sand and gravel erosion, andresistance to rust and thinning of the chassis after long-termuse.
4. The mounting holes for the group assembly areintegrally cast, the frame fixing holes, and thesteering gear assembly holes are fully matched tothe original factory, requiring no grinding or cutting.
5. Factory timeliness, vibration, and load-bearing fatiguetesting, suitable for mountainous areas, construction sites,and long-distance and heavy-duty freight road conditions
Core functional role
1. Vibration generated by the dedicated load-bearingbase for hydraulic steering gear, the steering gearassembly, and the steering retraction operation
. Stabilize the position of the rotating mechanism, prevent steering jitter during operation, and shift.
The gap widens, causing abnormal noises when deviating.
3. Slow down road impact, protect the steering gearhousing, oil pipe, seals, and extend the service life ofthe steering system.
4. Accurately position the steering gear installationangle, ensure smooth steering transmission,reduce steering load, and minimize jamming faults.
Change the judgment criteria
1. The frame body cracks, the installation holes are torn, deformed, and there is noticeable vibration and abnormal noise when turning.
2. Accidental magnetic impact, heavy load jolts causing bracket fracture, steering gear displacement, and oil leakage due to oil pipe wear
3. Safety hazards such as large-area corrosion of thesupport, reduced wall thickness, reduced load-bearingstrength, and falling off the steering gear.
During major overhaul and steering gear assembly change, deformation of the original bracket,
The misaligned hole needs to be replaced simultaneously.
Product Advantages
The original factory has zero mold opening dimensionsand no misalignment during loading and bonding; thecasting integrated structure is impact-resistant andatigue-resistant; the thickened reinforcing ribs areload-bearing and stable; rust-proof powder coating has along service life; sufficient stock is available, the repairfactory and fleet offers competitive bulk purchase
prices, and neutral export packages are exported.
