Basic product parameters

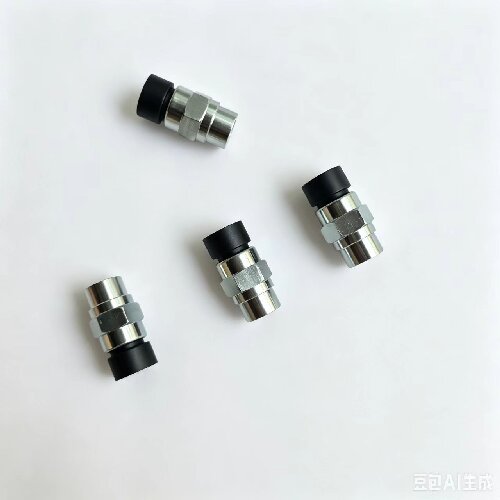

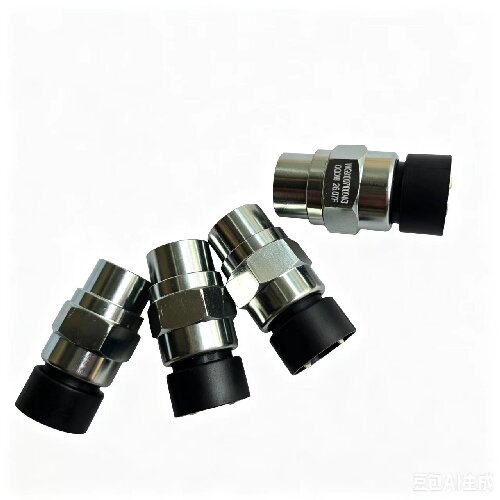

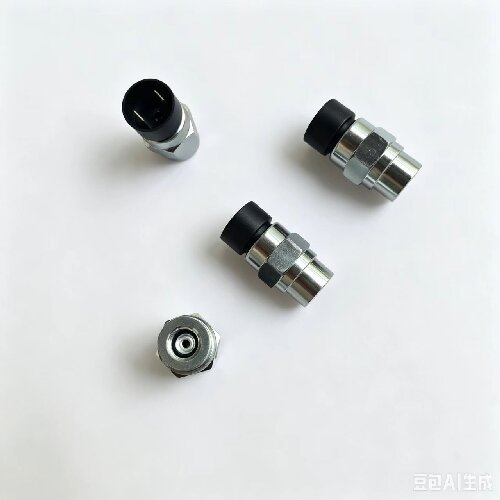

Part Number: WG9100710004Product Name: Air Pressure Signal Light Switch(Manual Brake Pressure Switch) Applicable Models: Heavy Truck Series Heavy Trucks such asSinotruk Howo and Steyr. Function: Detect brakeair pressure, control dashboard handbrake alarm,and signal output.
المزايا الأساسية للمنتج
recision pressure sensing core, sensitive contact response, signal transmission Lose steadily
The housing is galvanized for rust prevention treatment, vibration resistance, and service life.Longer
The sealing area strengthens the sealing, is less prone to air leakage, and is suitable for complex driving conditions Working conditions
Original vehicle thread interface, standard size, no modification required direct connectior Position installation
Factory airtightness testing, preventing air leakage, inaccurate signals, etc.Obstacle issue
Fault Replacement Indication
1. After the handbrake is released, the dashboardindicator light remains on continuously.
2. The alarm light does not turn on after pulling thehandbrake, indicating the air pressure signal.
3. Air leakage at the gas circuit joint position, pressurerelief on the switch
4. Under normal conditions of the line, the pressure signal is intermittent.
احتياطات التركيب
1. Place an order to verify the part number WG9100710004 and confirm the vehicle.Match
2. Turn off the air pressure in the air storage tank before installation,release the pressure, and then disassemble and reassemble it.
3. A small amount of raw material tape can be wound around thethreaded area to prevent air leakage at the interface
4. After installation, conduct a ventilation test and check whetherthe indicators are functioning properly.
